Infiray TH50 Värmesikte

  • 44 995 kr
  • 39 990 kr

Infiray TH50Beställningsvara 1-3dagar längre levtid!InfiRay TUBE TH50 är värmesiktet som ser ut som ett traditionellt kikarsikte, med knivskarp bildåtergivning

I lager
Artikelnummer: 1402

Infiray TH50

Beställningsvara 1-3dagar längre levtid!

InfiRay TUBE TH50 är värmesiktet som ser ut som ett traditionellt kikarsikte, med knivskarp bildåtergivning och full av funktioner och möjligheter som klarar av extremt väder och temperaturskillnader. TUBE är byggt av aluminium och monteras enkelt i de 30mm fästen som du själv väljer. Infiray TUBE värmesikte fungerar givetvis lika bra om dagen som mörkaste natt. Med InfiRay Outdoor-appen parar du enkelt ihop TUBE med din enhet och streamar bild, tar bilder och spelar in video.

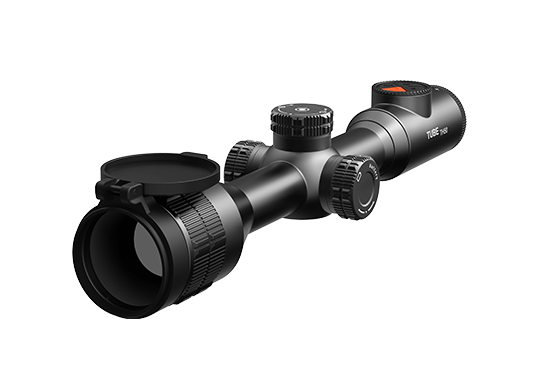

Traditional Day Scope Appearance

The Tube Series was designed from the ground up for optimal use on bolt action rifles and other platforms that demand flexible mounting options with increased eye relief. The traditional style housing allows for mounting with standard 30mm rings like a typical day scope.

12um 640×512 high capacity sensor

Being the top-end thermal scope of Tube Series, TH50 is equipped with the industry leading InfiRay 12 um 640×512 sensor with advanced image processing algorithm which has excellent performance in dealing with even the slightest temperature difference presenting detailed vivid imaging.

1.03”Micro-OLED display with 2560×2560 resolution

TH50 adopts particular 2560×2560 1.03”Micro-OLED display to provide finest observing experience with excellent optical parameter of 4x optical magnification and 8x eyepiece magnification, no need to stare into the screen like you used to, therefore the visual fatigue caused by the long-time observing can be prevented.

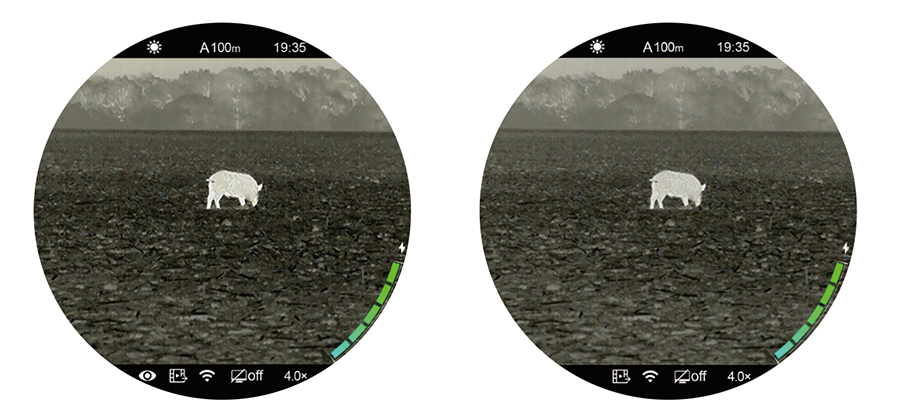

Ultra-clear Mode:

When Ultra-clear mode is on, bad weather condition effect is off. With Untra-clear mode, TH50 can still provide a clear and delicate imaging even in bad weather conditions such as heavy fog and rain. Bad weather can’t stop you from your great adventure.

More Accurate Zeroing

TH50 is able to reach 1.2cm per unit at 100m when zeroing. You can adjust the coordinate through 1.2cm per unit at 100m. Each scale unit is smaller. Therefore, the zeroing can be more accurate.

Smooth magnification adjustment

TH50 is able to magnify the imaging smoothly without flicker and stutter bringing users comfort when observing.

Shutterless Function

The Shutterless core module is adopted to nullify the shutter calibration, simplify the operation, and lower the energy consumption, making the imaging quieter and linear.

2361m Detection Range

Combining the extraordinary sensor and the powerful 50mm optics, TH50 can achieve the detection range up to 2361m.

32G Storage

TH50 comes with 32GB of memory for storing 57,000 images or 48 hours of video. Captured videos and images can be easily transferred to your smartphone at lightning speed via app.

TypeUncooled Vox
Pixel size, μm12
NETD, mk≤40
Frame Rate, Hz50
Optical Specifications
Objective Lens, mm50
FOV, º50
Optical Magnification, ×3.5~16.0
Digital Zoom, ×1.0~4.0
Eye Relief, mm50
Detection Range, m(Target size: 1.7m×0.5m, P(n)=99%)
Display Specifications
TypeMicro OLED
Battery Power Supply
Battery TypeTwo built-in 18650 batteries + one replaceable 18500 battery
Operating time (22 ºC), h*10
External Power Supply5V (Type C)
Physical Specifications
Scope Diameter, mm30
Max. Recoil Power, g/s²1000
Ingress Protection RatingIP67
Memory Capacity, GB32
Operating Temperature, °C-20~+50
Weight (Without the 18500 Battery), g<940
Dimension, mm370×85×75
